Door assembly system

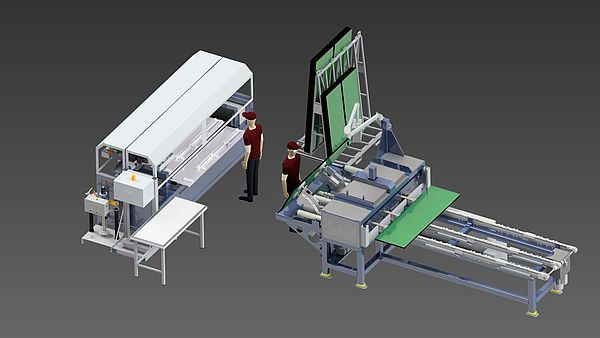

The system is used for semi-automatic bonding of plastic or aluminum frames on insulating glass panes. The plant consists of several interlinked components: a chain conveyor, a glass cross transport incl. tilting table, a gluing station and a door assembly incl. door pre-assembly and finished part conveyor.

The glass pane is transported via the glass cross transport to the tilting table, where it is swivelled into a horizontal position and moved into the door pre-assembly. The operator places the frame parts, provided with adhesive, on the glass pane. In the door assembly the parts are pressed on evenly.
