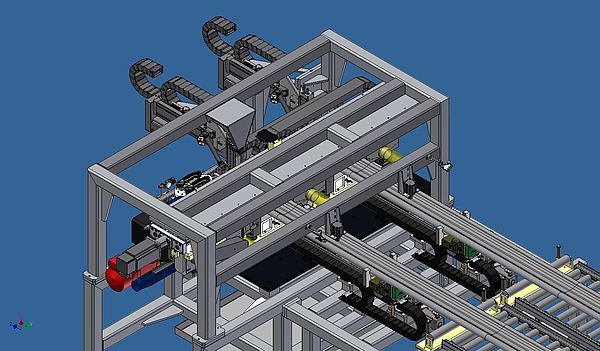

Double Saw

Two aluminium profiles are fed to the double saw in parallel via the roller conveyor. The feeding of the products for clamping, sawing and brushing is done by two parallel loading axes. Here a clamping device corresponding to the product takes up the profile. The workpieces are then cut to length in the sawing station. The burr caused by the sawing is removed by means of integrated brushes. The gripper system is equipped with an interchangeable gripper system corresponding to the product. As soon as the sawn sections are removed from the clamping device, they are moved to another brushing position. The integrated brush now deburrs the 2nd side of the sections in the alternating gripper system and the 1st side of the following sections in the clamping device in parallel. The removal handling units then move into the deposit position over the waiting tool carriers (WT) on the conveyor belt, swivel the grippers down by 90° and deposit the workpieces there.
